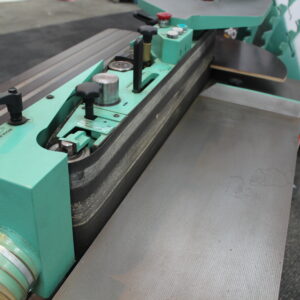

Ex Demo 2018 Kundig Uniq Edge Sander

FEATURES:

• Heavy cast iron work table provided on one side for solid wood sanding
• Table 1180x325mm including bevelling fence with scale
• Also provided is a similar one for veneer sanding on the other side
• Motorised height adjustment and tilting of abrasive belt
• No adjustment of the working table required
• 400x500mm on oscillating mandrel for sanding bobbins
• Diameter of 25,30,40 & 45 x 100mm for internal and external roundings
• Mandrel protection included
• Sanding unit adjustable in height by motor OF up to 120mm
• Mechanical inclination up to 45 degrees without resetting of tables (patented construction)
• Belt driving motor 3kW (4HP)
• 380 Volts/50 Hz with protective motor switch
• Extra motor for belt oscillation
• Oscillation stroke programmable from 10MM to 90mm
• Electrical case integrated into machine frame
• Constant belt tension with length compensation
• Belt running adjustable
• Contact guard plate
• Dust extraction by 2 suction caps
• Flexible ducts
• Common internal tube & an outlet – dia. 10mm
• Preparation for mounting a support for a feeding unit
• Openings in the frame for easy movement by a forklift truck
• Belt width 150-200mm
• Belt length 2000mm
• Working level approx. 830mm (solid sanding side respectively)
• 900mm (side for veneer sanding)
• Net weight 460kg
• Floor space 1150x800mm
• Patented Worldwide
