Kündig Uniq Edge Sander

Your Comprehensive Edge Sanding Solution

The Kündig Uniq is designed to handle solid wood, veneered edges, and contour sanding with the convenience of oscillation across the entire sanding unit. It offers four distinct modes of operation without requiring any changes. Whether you’re working on straight or bevelled edges, veneered or solid surfaces, the adjustable height of the sanding belt unit ensures the full utilization of abrasive belts, making it suitable for all your needs.

FEATURES:

• Motorised height adjustment and tilting of abrasive belt
• Heavy cast iron work table provided on one side for solid wood sanding
• Table 1180x325mm including bevelling fence with scale
• Also provided is a similar one for veneer sanding on the other side
• No adjustment of the working table required
• 400x500mm on oscillating mandrel for sanding bobbins
• Diameter of 25,30,40 & 45 x 100mm for internal and external roundings
• Mandrel protection included
• Sanding unit adjustable in height by motor OF up to 120mm
• Mechanical inclination up to 45 degrees without resetting of tables (patented construction)
• Belt driving motor 3kW (4HP)
• 380 Volts/50 Hz with protective motor switch
• Extra motor for belt oscillation
• Oscillation stroke programmable from 10MM to 90mm
• Electrical case integrated into machine frame
• Constant belt tension with length compensation
• Belt running adjustable
• Contact guard plate
• Dust extraction by 2 suction caps
• Flexible ducts
• Common internal tube & an outlet – dia. 10mm
• Preparation for mounting a support for a feeding unit
• Openings in the frame for easy movement by a forklift truck
• Belt width 150-200mm
• Belt length 2000mm
• Working level approx. 830mm (solid sanding side respectively)
• 900mm (side for veneer sanding)
• Net weight 460kg
• Floor space 1150x800mm

On the solid sanding side against the continuous, graphite cloth covered back wall of the sanding belt, table 1180 x 325mm including bevelling fence with scale.

On the side for veneer sanding along the 2 platens (the entry platen with integrated extraction slits and precise adjustment of stock removal according to scale) against the elastic sanding pad (also oscillating for an equal consumption of the graphite cloth, sanding pad device includes adjustment for abrasive grits compensation and belt tension reduction by two guide pulleys) table 1180 x 325mm.

On the frontal side against the rubber covered driving roller with ø 90mm with an optionally available semi round table (with extraction outlets) ø 300mm.

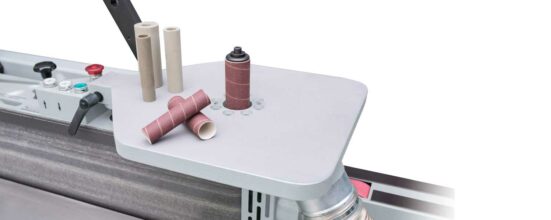

On the driving roller with an optionally available, quickly mountable cast table (with holes for the dust extraction) 400 x 500mm on oscillating mandrel for sanding bobbins with ø of 25,30,40,& 45 x 100mm for internal and external roundings, including mandrel protection.

Standard execution Kundig Uniq cost £=POA

Extra tables – £=POA

Q4          Additional cast table with mandrel and 4 sanding bobbins ø25,30,40 & 45 x 100mm

Q5          Semi round table on the driving rollers ø 90mm

Options for all Edge Sanders – £=POA

	A special device simplifies the sanding of smaller components and glazing bars Option for Uniq, Uniq-S
	The grooved inlet platen allows the sanding of edges with overlapping veneers Option for Uniq, Uniq-S, Flash
	Semi round table for sanding curved pieces against the rubber covered driving roller Option for Uniq, Uniq-S, Flash
	Extra table with mandrel and abrasive bobbins for external and internal shapes Option for Uniq, Uniq-S, Flash
	Easy handling of large panels thanks to the telescopic support rail Option for Uniq, Uniq-S, Flash
	Increased flexibility and movability thanks to four transport wheels Option for Uniq, Uniq-S, Flash
	Special sanding pad inserts are available, such as an extra hard sanding pad for extended sanding of solid wooden edges or a ceramic sanding pad for heavy calibration tasks Option for Uniq, Uniq-S, Flash
	Different handling and working table extensions are available, even custom versions Option for Uniq, Uniq-S, Flash
