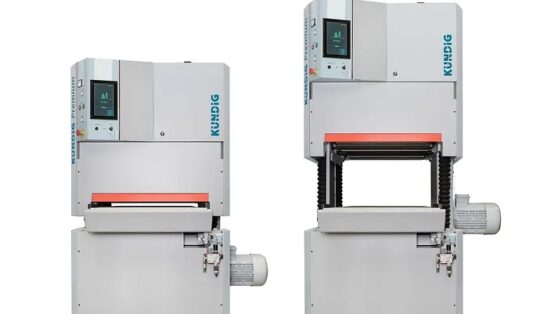

Kündig Premium 2

Constant passline machines (it is the sanding group that raises and lowers to the desired thickness) with a standard working height 3-200mm and available in working widths of 650″ 1100 1350 and 1600mm

  • Parallel spring-loaded steel pressure roller at the inlet
  • Rubberised pressure rollers between the sanding units at the outlet
  • Motor options: 11kW (for 650mm), 15kW (for 1100/1350mm), 18.5kW (for 1600mm), all operating at 400V/50Hz with soft start for reduced power consumption during start-up
  • Motorised fine height adjustment with numerical display
  • Pneumatic belt tensioning, control, and oscillation; approximate compressed air consumption: 4L/min
  • Optimum safety ensured by automatic immediate stop with disc brake in case of belt breakage, belt run-off, pressure door activation, or when opening the belt entry door
  • Workpiece feed: 0.75kW (for 650/1100/1350mm), 1.5kW (for 1600mm), equipped with fabric-reinforced rubber transport carpet
  • Entire electrical system with contactor control: automatic star-delta start-up of the main motor, motor protection, and ammeter for monitoring stock removal
  • Maximum passage height: 200mm
  • Sanding belt dimensions: 670/1120/1350/1620 x 2000mm


SKU: Kündig Premium-1 Category: Tag:
