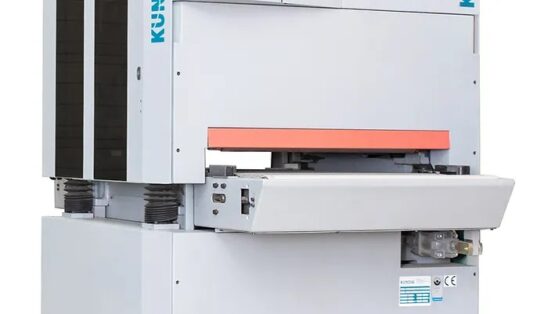

Kündig Master Wide Belt Sander
Drawing on 75 years of expertise, we present a legacy of sanding technology distilled into perfection, offering an unparalleled experience in precision. Every aspect is meticulously crafted by seasoned masters, establishing it as the trusted choice for woodworking shops globally. Explore configurations that have stood the test of time, ensuring swift and dependable production of impeccable surfaces.
Construction: The Mastery Transcends – Unmatched Robustness and Durability Across All Model Series. The Master Boasts the Identical Stalwart Build, Ensuring Every Machine is an Investment in Longevity. With Unwavering Precision, Our Machines Deliver Impeccable Sanding Results for Years on End.
Head Movement – Constant Pass Line: Pioneering Excellence for Over Three Decades – Our Machines Exclusively Feature Moving Top Sections. The Choice Is Clear: Complexity Elevates Design, Resulting in Unrivaled Benefits. With Enhanced Load Capacity, Enduring Precision, and the Perks of a Steady Work Height, Our Approach Surpasses Conventional Table Adjustments. Witness the Advancement That Fuels Reliability.
Workpiece Precision: Kundig Master boasts effortlessly motorized upper section adjustment, offering finesse through intuitive touch screen control. It offers a minimum 200mm passage height and a spacious 1350mm working width.
Eco Energy Saving Mode:* Redefining efficiency, Kundig Master incorporates our exclusive Eco* Energy-Saving Mode, tailoring power consumption to workload. Experience significant savings without compromising performance.
Operation Ease: Enjoy intuitive controls with touch screen access. Tailor feed speed, stock removal, passage height/target thickness, and segmented pad controls to perfection. Achieve ideal settings in seconds for impeccable sanding.
Precision in Every Dimension: Measure workpiece thickness accurately across the entire working width. Store separate programs for repetitive sanding tasks, streamlining efficiency and ensuring safety.
Sanding Units: Kundig Master offers two versions, distinguished by the fine sanding pad unit. The units feature a proven combination of a calibration roller and a sanding pad unit. For safe workpiece guidance, there’s a parallel spring-loaded steel pressure roller at the machine infeed, and rubber pressure rollers between the sanding units.
- Calibration Unit (R): Ideal for calibration tasks with adjustable contact roller level to compensate for abrasive grit thickness.
- Segmented Sanding Pad (E): With the E-Plus package, the fine sanding unit has a segmented, electronically controlled sanding pad for precise fine sanding, especially in the workpiece’s edge area.
- Pneumatic Sanding Pad (P): Part of the comfort package, the Master is equipped with a pneumatic sanding pad allowing precise pressure adjustment
Details:
- Solid, Space-saving 2-widebelt sander for high quality calibrating and finishing
- Constant passline through adjustment of machine’s upper part (constant working level)
- 1350mm Working width (53inch)
- With 2 units sanding from the top
- A grooved contact roller of well tested hardness
- Level of contact roller infinitely variable in height according to a scale of abrasive grits
- Sanding pad with quickly exchangeable graphite cloth
- Floating precision ground steel pressure roller at the inlet
- Rubbered pressure rollers between the sanding units and at the outlet
- Main motror 15Kw (20HP), 400 volts/ 50Hz
- Height adjustment by motor with automatic slow motion for fine adjustment and digital display

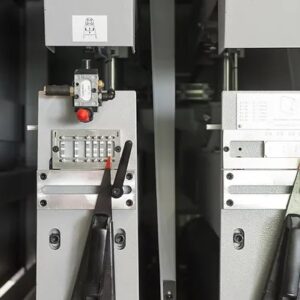

- Belt tension, tracking and oscillation pneumatically, consumption of air approx. 4 lt/min.
- Workpiece feed 0.75Kw (1HP) with reinforced conveyor belt and rubbered driving roller
- Whole electric device with contactor control; automatic star-delta starter of main motor, overload and shortcircuit motor protection and ammeter for supervision of stock removal
- Workpiece thickness Max. 160mm (6.3Inch)
- Abrasive belts 1350 x 2000 mm
Configurations
| RPe | RRPe | |
|---|---|---|
 |
 |
|
| The 2 sanding units guarantee absolutely perfect and precise calibration and high quality finishing of solid wooden and veneered workpieces (veneer thickness has to be greater than 0,8 mm [0.031”]). The amount of contact rollers determines the stock removal you can achieve in one sanding pass. | ||
| RE | RRE | |
|---|---|---|
 |
 |
|
| The 2 sanding units guarantee absolutely perfect and precise calibration and high quality finishing of solid wooden and veneered workpieces, including even very thin veneers. The amount of contact rollers determines the stock removal you can achieve in one sanding pass. | ||
E-Plus-Package:
- All features of the Comfort-Package
- Intead of pneumatic sanding pad: Electronically controlled, segmented sanding pad for even more fine tuned sanding performance, especially in the edge areas of workpieces
Comfort Package:
- Air-Filled sanding pad with high precision air pressure regulator
- Automatic setting of height over the whole working width
- Safety device for overthick workpieces with feed stop and automatic raising of machine’s upper part
- Infinitely variable adjustment of stock removal
- Electronic adjustment of variable feed speed 3-15 m/min. At the switch board
- PLC-control/ programming with colour touch screen and TEACH-IN memory (at the touch of a buttin according to the sanding result, i.e no type in required)
- Pneumatic control of conveyor belt
- Inlet and outlet supports with roller
- Eco*- energy saving mode
- Error Diagnosis
- Hour meter per lot and in total
