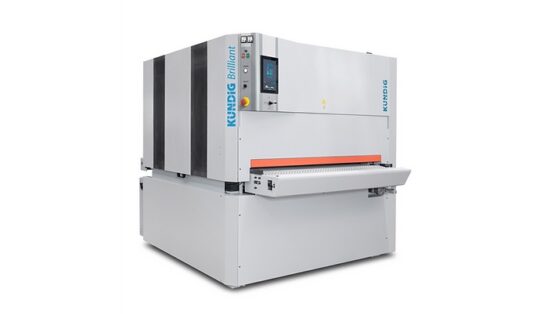

KÜNDIG Wide Belt Sanders – The Brilliant Series
The KÜNDIG wide belt sanders of the Brilliant series are equipped with at least one sanding unit featuring patented diagonal sanding technology. Despite their compact dimensions, these machines are capable of handling complex tasks such as veneer sanding and the intermediate sanding of high-gloss paints. The reduction of grinding marks is particularly appreciated in window production and for delicate, unadulterated solid wood projects.
The diagonal units are available in various configurations, including calibration rollers, air cushion pads, electronic segmental pressure pads, and combi units. Additionally, options such as cross-belt units or brushes can be integrated. The available working widths range from 650mm to 2200mm.
These Machines Combine the Features of the Premium Series and More
The Brilliant series machines incorporate all the features of the Premium Series and go a step further by including at least one sanding unit with KUNDIG’s patented oblique sanding technology.

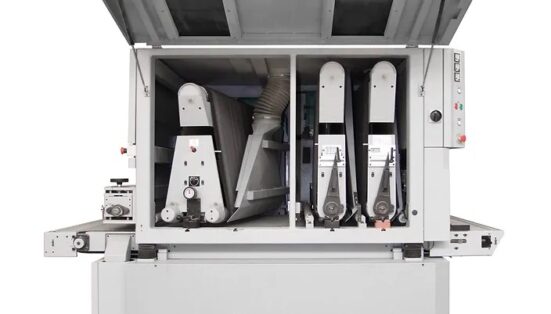

KÜNDIG’s Innovative Solution
To eliminate the problematic surface patterns caused by parallel sanding units, KÜNDIG’s engineers devised pivoted sanding heads. This innovation means that the sanding belt no longer rotates parallel to the feed direction. As a result, defects on the sanding belt are shifted slightly sideways with each rotation, reducing the likelihood of visible marks on the workpiece.
Advantages of KÜNDIG’s Solution:
- Achieve an absolutely homogeneous surface.
- Eliminate oscillation traces.
- Produce wood surfaces free of fibers.
- Significantly reduce scratches on cross-grain areas.
- Consume fewer wide belts (up to 35% less).
- Less strain on the sanding machine.
- Reduce lacquer consumption due to improved surface preparation.
- Enhance production quality.
- Simplify technical handling.
Available Working Widths:
- 650 mm / 26”
- 1100 mm / 43”
- 1350 mm / 53”
Available Belt Lengths:
- 2620 mm / 103″
For more info on Kundig wide belt sanders, see the video below.
