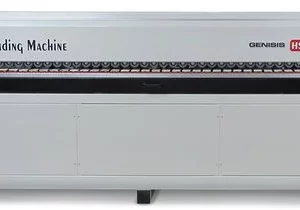

Similar to the 512S, the 612S features an additional set of top and bottom trimmers. When applying a 2mm edge, this feature enables a square finish on the ends and a radius on the top and bottom. In addition you can opt for a radius finish all around.
Genisis 612S FEATURES
| Colour touch screen controller |
| Pre milling (2 motors with PCD Tooling) |
| Pre heating of the panel edge |
| Wide glue pot |
| Easy to adjust glue thickness application |
| Automatic tape infeed |
| Automatic tape infeed by motor |
| Automatic tape guillotine |
| Top and Bottom flush trim/end trim/ corner rounding |
| Top and Bottom Scrapers |
| Top and BottomSolvent cleaners |
| Top and Bottom Buffing |
| Integrated dust extractor |
| Lift up safety cover with internal lighting |
| Lateral Support rail For large panels |
| Tape support table |
Genisis 612S FUNCTIONS
Top & bottom trim
Corner rounding
Radius scraping
Solvent Cleaning
Top & bottom trim
Genisis 612S FEATURES
| 412S | 512S | 612S | ||
|---|---|---|---|---|
| Edge Band Thickness | 0.4-2mm | Y | Y | Y |
| Panel Height | 0-45mm | Y | Y | Y |
| Feed speed | 12 m/min | Y | Y | Y |
| Standard LCD control | Y | N | N | |
| Colour touch screen control | N | Y | Y | |
| Tape support table | Y | Y | Y | |
| Adjustable infeed fence | Stock removal for pre milling | N | Y | Y |
| Safety Limiter | Prevents over feeding | Y | Y | Y |
| Pre milling | 2 x 1.8 Kw, 10,000 RPM | N | Y | Y |
| Automatic tape infeed | Y | Y | Y | |
| Heavy duty guillotine | To cut from coil | Y | Y | Y |
| Pre heating of the edge | N | Y | Y | |
| Multi function trimmers | 2 x 0.55 Kw, 12,000 RPM | Y | Y | Y |
| Additional top and bottom trimmers | 2 x 0.55Kw, 12,000 RPM | N | N | Y |
| Scrapers | Top and bottom | Y | Y | Y |
| Solvent cleaners | Top and bottom | Y | Y | Y |
| Buffers | Top and bottom | Y | Y | Y |
| Lateral Support rail | For large panels | Y | Y | Y |
| Acoustic safety enclosure | With lighting | Y | Y | Y |
| Integrated dust blower | Y | Y | Y | |
| Heat up time | Circa 30 mins | Y | Y | Y |
| Glue tank capacity | 2.5Kg | Y | Y | Y |
| Air Pressure | 5 Bar | Y | Y | Y |
| Power Requirement | KW | 6.5 | 9.5 | 13.2 |
| Net Weight | KG | 750 | 900 | 1250 |
| Working Height | mm | 930 | 930 | 930 |
| Length | mm | 3500 | 4250 | 4600 |
| Width | mm | 1000 | 1000 | 1400 |
| Height | mm | 1500 |
1500
|
1500 |
