All machines complete with:
- Osai CNC with 17″ colour TFT screen
- Centralised lubrication
- All axis controlled by state of the art servo motors
- Automatic tool offset
- Easy referencing using reference pistons
- Alphacam operating software
Alphacam CAD/CAM
Alphacam is a full-featured, easy to use CAD/CAM solution for manufacturers desired fast, efficient toolpaths and the generation of reliable, machine ready CNC code. Program provides you with the complete machining capabilities to manufacture anything from simple 2 Axis parts though to complex 5 Axis components.
- Nesting Solution
- 3D Engraving and Routing Applications
- Aggregate and Boring Unit Support
- Extensive Usage Area With Additional Modules
Extreme | |
X Axis Speed | 60 m/min |
Y Axis Speed | 60 m/min |
Z Axis Speed | 20 m/min |
Z Axis Travel | 200mm |
Router Motor | 9 Kw (12 Hp) |
Router motor speed | 24,000 RPM (max) |
CAD/CAM Program | Alphacam Essential 2D |
Installed Power | 25Kw (34 Hp) |
Models Available

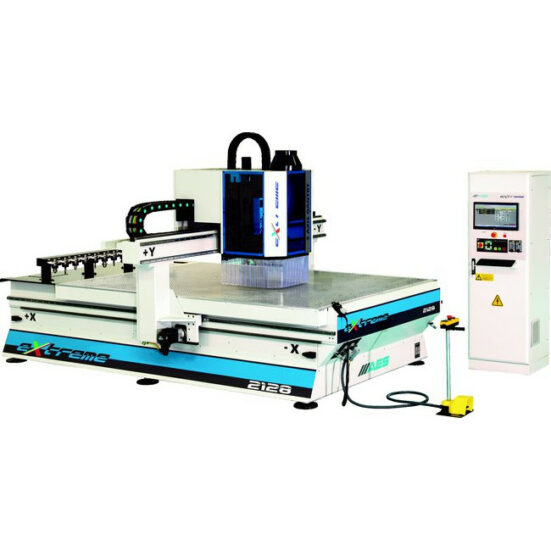

EXTREME 2142
- Working Dimensions 2100 x 4200 mm / Z Axis Stroke 200 mm
- 9 kW HSK F 63 Spindle Unit
- Linear Tool Changer Unit (14 Tool Capacity)
- Alphacam Essential 2D Program
- 250m³ Vacuum Pumps / Vacuum Area (Single)
- Installation Dimensions 4500×6500 mm / Installed Power 25 kW
- Weight (Approx.) 5500 kg
Options Include
- Increased Vacuum
- Up to 21 vacuum areas
- Rotary tool changer
- Increased HP to router head
- Auto lift tables for infeed
- Auto loading by vacuum suction cups
- Auto unloading and cleaning device
- Auto conveyor for offloading
- Auto labelling system with alignment
- Aggregate heads
- C Axis head
- Vacuum blocks
